Lisp miễn phí chuyển Circle thành Point | CA2P Convert circle to point in AutoCAD | AutoLISP Reviewer

Ứng dụng được phát triển/Sưu tầm bởi đội ngũ AutoLISP Thật là đơn giản


Thông tin thêm: 👉👉👉

Lệnh CA2P

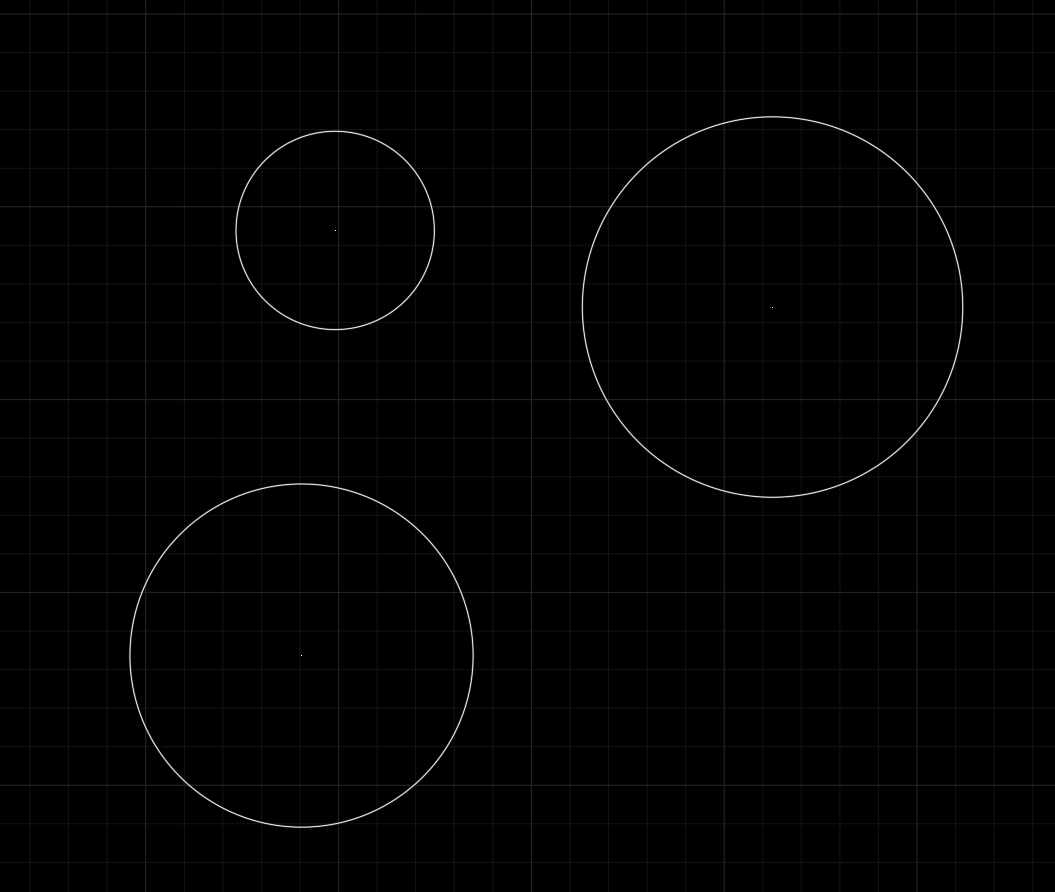

Chuyển đổi Circle thành Point trong bản vẽ AutoCAD


1 Thêm class CA2P.lsp

Lưu mã sau dưới dạng tệp tin CA2P.lsp
Code:
(defun C:ca2p ( / A A1 B C D n del)
  (if
    ;Check for selection. If nothing is selected, the lisp exit quietly.
    ;Without this check, (sslength A) result is an error
    (and
      ;filter selection set to circles and arcs only
      (setq A (ssget "_:L" '((0 . "CIRCLE,ARC"))))
      (progn ;option to delete the circles or not
        (initget "Yes No")
        (setq del (getkword "\nDelete the circles [Yes/No] <No>: "))
        T
      )
    )
    (progn
      ;inititalize loop
      (setq n 0)
      (setq B (sslength A))
      ;start loop
      (while (< n B) ; "n < B" doesn't work, everything in lisp should be a list

        (setq C  (ssname A n) ; get entity from selection set
              D  (entget C)   ; get entity definition
              A1  (cdr (assoc 0 D)) ; get entity type
        )

        (cond
          ;(cond (<test1> <result1>)   (<test2> <result2>) ...)
          ;<test> is the first element to be evaluated.
          ;in ( = "CIRCLE" A1  ...)  the first element is "=", which is always not nil, so it's True
          ;in ((= "CIRCLE" A1) ...) the first element is "(= "CIRCLE" A1)"
          ((= "CIRCLE" A1)
           (entmakex (list (cons 0 "point") (assoc 10 D)))
           (if (eq del "Yes") (entdel C))
          )
          ((= "ARC" A1) (entdel C))
        )

        (setq n (+ n 1))

      )
    )
  )
		(princ "https://forums.autodesk.com/t5/visual-lisp-autolisp-and-general/circle-amp-arc-to-point-autolisp/td-p/9890685")
		(princ "Share on lisp.vn")

)



Nguồn


Link tải (MediaFire)




---------------------------------------------------------------------------------------------
Ứng dụng được phát triển bởi đội ngũ AutoLISP Thật là đơn giản - Tác giả ứng dụng in D2P



Mọi thông tin xin liên hệ Fanpage AutoLISP Thật là đơn giản!
Cảm ơn bạn đã theo dõi!
